This Cacti template should work with any autonomous Cisco AP. It will SNMP poll and display all active Cisco AP Dot11 Associations in Cacti. Note the AP I am testing with has an AIR-RM3000AC-A-K9 module, giving me an extra radio.

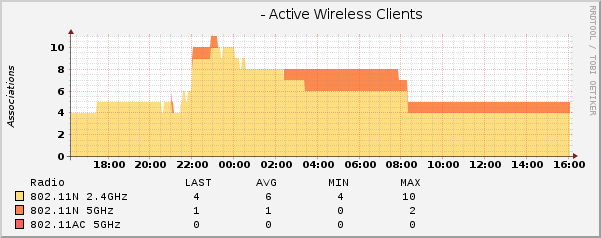

Cisco Dot11 - Active Wireless Clients

If you do not have a 802.11AC radio installed in your AP then after importing you may need to modify the Graph Template and remove all the Radio2 graph template items; not doing so may cause the graph not to display properly.

SNMP OIDs queried: [SOURCE]

ActiveWirelessClients (for 2.4Ghz radio) = OID: .1.3.6.1.4.1.9.9.273.1.1.2.1.1.1
ActiveWirelessClients (for 5Ghz radio) = OID: .1.3.6.1.4.1.9.9.273.1.1.2.1.1.2
ActiveWirelessClients (AIR-RM3000AC-A-K9) = OID: .1.3.6.1.4.1.9.9.273.1.1.2.1.1.10

This Cacti template will import/update the following items:

GPRINT Preset

  • Normal
  • Exact Numbers

Data Input Method

  • Get SNMP Data

Data Template

  • Cisco Dot11 – Radio0 Associations
  • Cisco Dot11 – Radio1 Associations
  • Cisco Dot11 – Radio2 Associations

Graph Template

  • Cisco Dot11 – Active Wireless Clients

File Attachments

File File size
zip cacti_graph_template_cisco_dot11_-_active_wireless_clients 4 KB
